As EV charging infrastructure expands, even minor measurement inaccuracies can have a major impact, including billing disputes, compliance risks, and unnecessary maintenance costs. With real-time validation, the TE1000 and TE1100 quickly and easily detect deviations, enabling manufacturers, EVSEs, operators, and service providers to take action when needed, thereby reducing downtime and avoiding costly interventions. The result is a more reliable network, transparent billing, and readiness for stricter regulations, including the expected introduction of mandatory periodic testing in the near future.
Tunkia TE1000

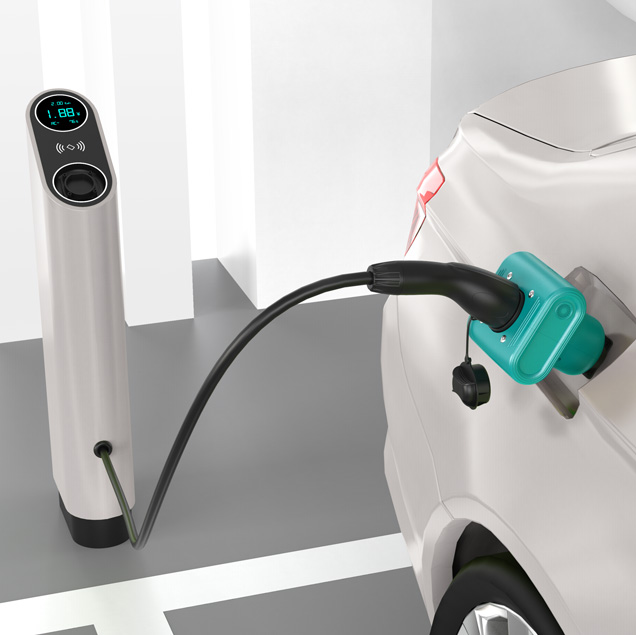

The Tunkia TE1000 turns any charging point into a test station. The device is compact and portable, and can be connected directly to an electric car’s charging port for a quick, accurate on-site check. Using an electric vehicle as the load secures efficient, sustainable testing with minimal preparation and disruption.
Features
- Super portable
- High accuracy up to Class 0.05
- Supports EV charger MMQ testing
- Millisecond-level energy update rate for dynamic EV charging loads
- Accurate measurement under fluctuating charging conditions
- Supports forward, reverse, and total energy measurement
- Built-in Bluetooth connection
- Strong compatibility with chargers and vehicles
Tunkia TE1100

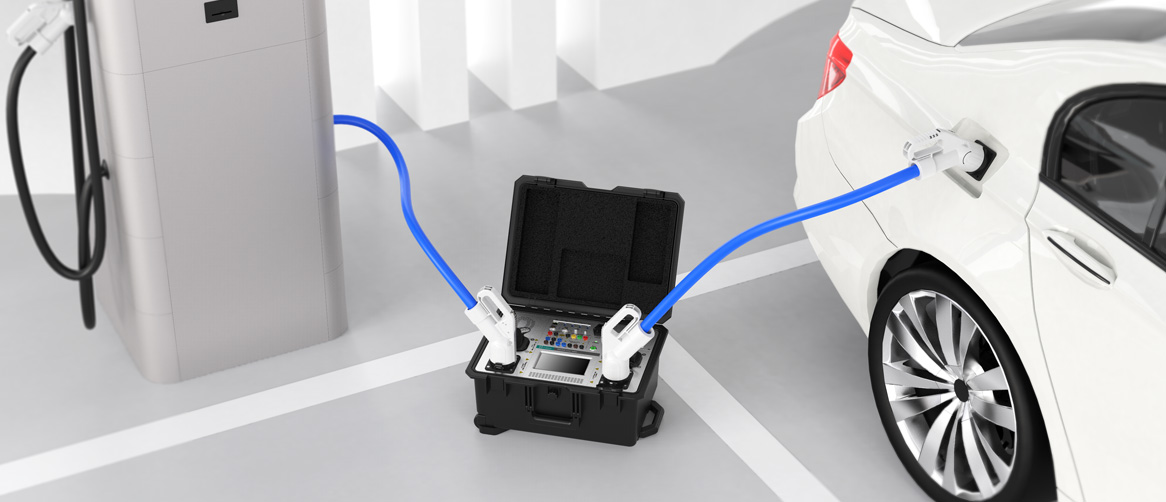

The Tunkia TE1100 is a suitcase-sized integrated AC/DC charger tester for electric vehicles, designed for accurate on-site testing of charging stations. The device offers both AC and DC power measurements with Class 0.05 accuracy, enabling reliable testing for operational faults across a wide range of EV chargers. It is designed for field use and combines portability with high-precision performance in a single compact unit.
Features
- Dimensions: 540x410x270mm (26 kg)
- DC measurement: 30–1200 V, 1–300 A, Class 0.05 power/energy
- AC measurement (3-phase): 60–300 V, 0.1–80 A per phase, Class 0.05
- Built-in CCS2 (DC) and IEC Type 2 (AC) interfaces
- Integrated vehicle simulation (pilot circuit, battery voltage & BMS), works with loads + OR EV
- Supports resistive and EV loads; up to 45 kW AC / DC can be cascaded per unit
- Two verification methods: pulse and accumulated energy (up to 0.000001 kWh resolution)
Visit the TE1000 and TE1100 product pages for more specifications.
